The Anatomy of a Faceted Gemstone: What Metalsmiths Need to Know Before Setting a Stone
A faceted gemstone can look simple at first glance: sparkly top, pointed bottom, pretty color, and lots of little flat surfaces catching the light. But when you start setting that stone in metal, especially in bezels, prongs, baskets, or step settings, the anatomy of the stone suddenly matters a lot. The way a gem is cut affects how it sits, how much metal needs to hold it, where pressure can safely be applied, and where the stone is most vulnerable.
For metalsmiths, understanding gemstone anatomy is not just about using the correct vocabulary. It is about learning how to “read” the stone before you build the setting.

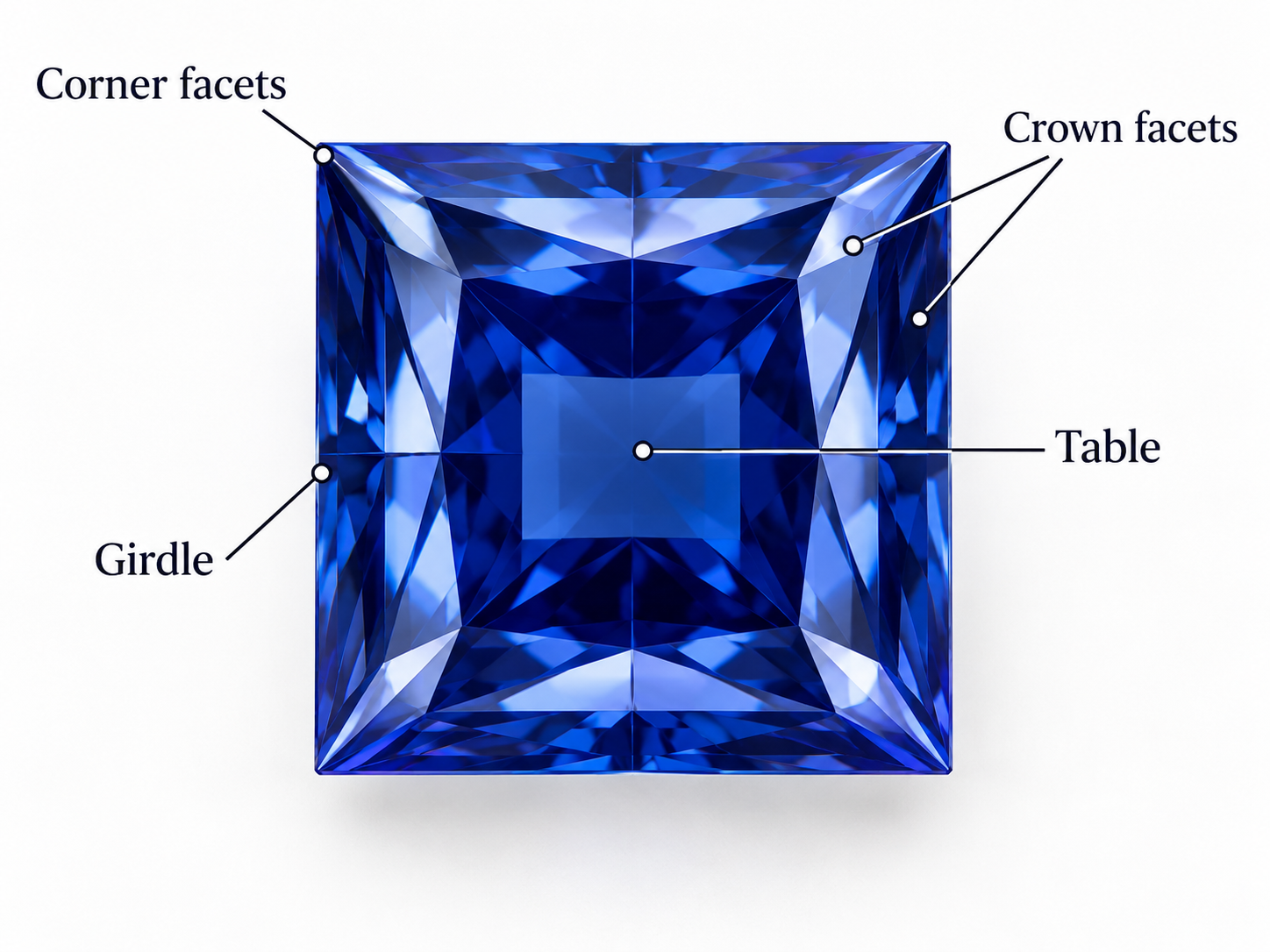

Blue Sapphire, top view.
From the top, the largest flat facet you usually see is the table. This is the broad, polished surface at the top of the stone. The table acts like a window into the gem. Around it are smaller facets that help bounce light through the stone and back to the viewer’s eye. These upper facets are part of the crown, which is the section of the stone above the girdle.
The crown includes several types of facets depending on the cut. In many brilliant-style cuts, you may see star facets, bezel facets, and break facets. You do not need to memorize every variation of every cutting style to become a better setter, but you do need to understand that these facets create angles. Those angles affect how close metal can come to the stone without covering too much of its face or pressing in the wrong place.
Around the widest outside edge of the stone is the girdle. The girdle is one of the most important parts of the gemstone for setters because it is often the area that the setting grips. In a bezel setting, the metal is pushed over the upper edge of the stone, usually just above or near the girdle. In a prong setting, the prongs typically come over the crown and hold the stone close to the girdle area.
The girdle may be thin, medium, thick, even, uneven, polished, faceted, or slightly wavy. This is why measuring only the length and width of a stone is not enough. Two stones with the same face-up dimensions can require slightly different settings if one has a very thin girdle and the other has a thick one.

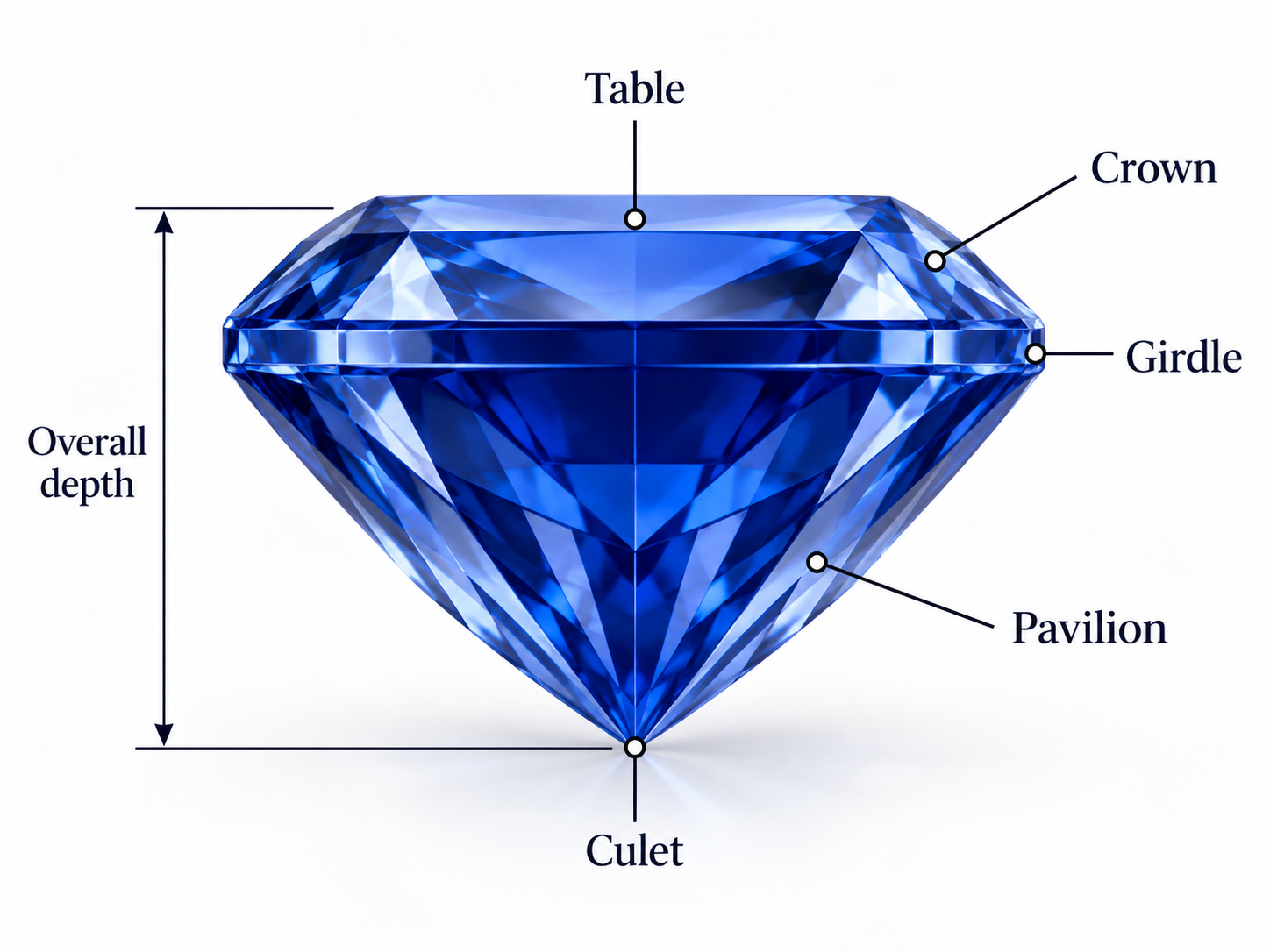

Blue Sapphire, side view
The side view is where a faceted gemstone really starts to make sense for fabrication. The upper portion is the crown, the middle edge is the girdle, and the lower portion is the pavilion. The pavilion tapers down from the girdle toward the bottom point or small flat facet, known as the culet.
The crown height affects how much of the stone rises above the setting. A high crown may need more clearance so the metal does not crowd the top of the stone. A low crown may require extra care because there is less vertical space for the bezel or prongs to grab without covering the stone too much.
The girdle thickness matters because it tells you how much material exists around the widest edge of the gem. A very thin girdle can be delicate and may chip if too much pressure is applied. A thicker girdle can usually tolerate setting pressure more confidently, but it may also require more room in the seat or bezel wall. If your seat is too shallow, the stone may sit too high. If it is too deep, the stone may sink and lose visual presence.
Below the girdle is the pavilion. This part of the stone is often the most overlooked by beginners, but it is essential when building a setting. The pavilion needs space. If the setting does not allow enough depth, the stone may rock, fail to sit level, or press against the bottom of the mounting. For faceted stones, the pavilion should never be forced into a setting that is too shallow. That pressure can create stress points and increase the risk of damage.
At the very bottom is the culet. Some stones have a pointed culet, while others have a tiny flat facet. Either way, the culet area should be protected. In a well-made setting, the culet should not be jammed against metal unless the design intentionally supports it with proper clearance and planning.
When preparing to set a faceted gemstone, always inspect the stone from both the top and the side. Measure the length and width, but also look at the depth, girdle thickness, crown height, pavilion shape, and overall symmetry. A stone that looks square from the top may have a slightly uneven girdle. A stone that measures evenly may still sit crooked if the pavilion is deeper on one side.
The better you understand the anatomy of the stone, the better your setting decisions become. You will know where to leave space, where to create support, where to apply pressure, and where to be gentle. That is the difference between simply making a setting that fits and making one that protects the stone, shows it beautifully, and holds it securely for years.
